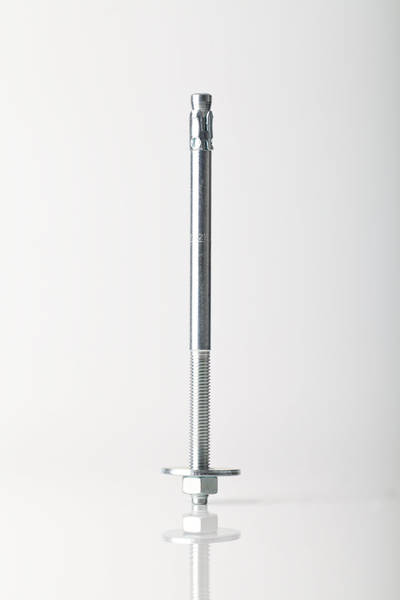

Wedge anchor KDK-U

Wedge anchor KDK-U - steel, galvanized, with big washer (DIN440) with european technical approval ETA-05/0241







	Product	Art-No.	Clamping range	Length	Drill Ø x depth	Torque moment	Thread	Qty
			[mm]	[mm]	[mm]	[Nm]	[mm]
	KDK-U 12-85/180	812 12 085	85	180	12 x 90	50	M 12 x 100	25/75
	KDK-U 12-105/200	812 12 105	105	200	12 x 90	50	M 12 x 100	15/60
	KDK-U 12-125/220	812 12 125	125	220	12 x 90	50	M 12 x 120	15/60
	KDK-U 12-145/240	812 12 145	145	240	12 x 90	50	M 12 x 120	15/60
	KDK-U 12-160/255	812 12 160	160	255	12 x 90	50	M 12 x 120	15/60
	KDK-U 12-190/285	812 12 190	190	285	12 x 90	50	M 12 x 120	10/60
	KDK-U 12-230/325	812 12 230	230	325	12 x 90	50	M 12 x 120	10/40
	KDK-U 12-260/355	812 12 260	260	355	12 x 90	50	M 12 x 120	10/40
	KDK-U 16-80/195	812 16 080	80	195	16 x 110	100	M 16 x 80	10/50
	KDK-U 16-100/215	812 16 100	100	215	16 x 110	100	M 16 x 120	10/50
	KDK-U 16-130/245	812 16 130	130	245	16 x 110	100	M 16 x 120	5/30
	KDK-U 16-165/280	812 16 165	165	280	16 x 110	100	M 16 x 120	5/30
	KDK-U 16-200/315	812 16 200	200	315	16 x 110	100	M 16 x 120	5/30
