Keilanker KDK - Zulassung

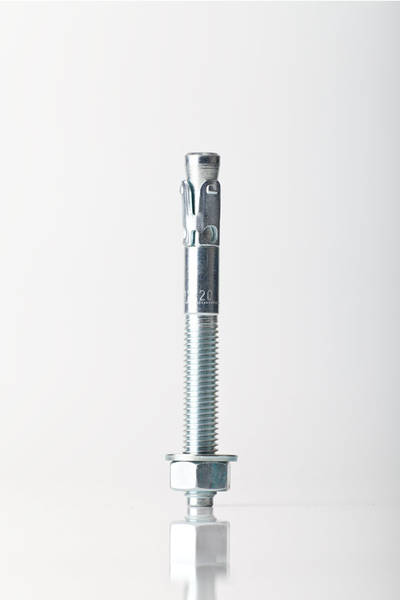

Keilanker KDK mit Zulassung ETA-05/0241



Zulassung

KDK_ETA-05-0241_Option_1.pdf (1.07MB)





*nicht Bestandteil der Zulassung

	Typ	Artikel-Nr.	Klemmdicke	Länge	Bohrloch Ø x Tiefe	Drehmoment	Gewinde	VPE
			[mm]	[mm]	[mm]	[Nm]	[mm]	[St.]
	KDK 6x40*	801 06 000	5	40	6 x 35	15	M 6 x 18	100/800
	KDK 6-15/65*	801 06 015	15	65	6 x 50	15	M 6 x 28	100/800
	KDK 6-50/100*	801 06 050	50	100	8 x 45	15	M 6 x 28	100/500
	KDK 8-5/50*	801 08 000	5	50	8 x 65	15	M 6 x 28	100/500
	KDK 8-10/75	801 08 010	10	75	8 x 65	15	M 8 x 40	50/400
	KDK 8-15/80	801 08 015	15	80	8 x 65	15	M 8 x 40	50/400
	KDK 8-20/85	801 08 020	20	85	8 x 65	15	M 8 x 40	50/400
	KDK 8-30/95	801 08 030	30	95	8 x 65	15	M 8 x 55	50/400
	KDK 8-45/110	801 08 045	45	110	8 x 65	15	M 8 x 60	50/250
	KDK 8-85/150	801 08 085	85	150	8 x 65	15	M 8 x 75	50/250
	KDK 10-10/60*	801 10 000	10	60	10 x 60	30	M 10 x 25	50/250
	KDK 10-10/80	801 10 010	10	80	10 x 70	30	M 10 x 40	50/250
	KDK 10-15/85	801 10 015	15	85	10 x 70	30	M 10 x 40	50/250
	KDK 10-20/90	801 10 020	20	90	10 x 70	30	M 10 x 50	25/200
	KDK 10-30/100	801 10 030	30	100	10 x 70	30	M 10 x 50	25/200
	KDK 10-45/115	801 10 045	45	115	10 x 70	30	M 10 x 60	25/200
	KDK 10-70/140	801 10 070	70	140	10 x 70	30	M 10 x 75	25/125
	KDK 10-100/170	801 10 100	100	170	10 x 70	30	M 10 x 100	25/125
	KDK 10-140/210	801 10 140	140	210	10 x 70	30	M 10 x 100	25/125
	KDK 12-5/75*	801 12 005	5	75	12 x 70	30	M 12 x 35	25/125
	KDK 12-10/95	801 12 010	10	95	12 x 90	50	M 12 x 50	25/125
	KDK 12-15/110	801 12 015	15	110	12 x 90	50	M 12 x 50	25/125
	KDK 12-20/115	801 12 020	20	115	12 x 90	50	M 12 x 65	25/125
	KDK 12-30/125	801 12 030	30	125	12 x 90	50	M 12 x 80	25/125
	KDK 12-50/145	801 12 050	50	145	12 x 90	50	M 12 x 80	25/125
	KDK 12-65/160	801 12 065	65	160	12 x 90	50	M 12 x 80	25/75
	KDK 12-85/180	801 12 085	85	180	12 x 90	50	M 12 x 100	25/75
	KDK 12-105/200	801 12 105	105	200	12 x 90	50	M 12 x 100	20/80
	KDK 12-125/220	801 12 125	125	220	12 x 90	50	M 12 x 120	15/60
	KDK 12-145/240	801 12 145	145	240	12 x 90	50	M 12 x 120	15/60
	KDK 12-160/255	801 12 160	160	255	12 x 90	50	M 12 x 120	15/60
	KDK 12-190/285	801 12 190	190	285	12 x 90	50	M 12 x 120	10/60
	KDK 12-230/325	801 12 230	230	325	12 x 90	50	M 12 x 120	10/40
	KDK 12-260/355	801 12 260	260	355	12 x 90	50	M 12 x 120	10/40
	KDK 16-15/115	801 16 015	15	115	16 x 110	100	M 16 x 60	20/60
	KDK 16-30/145	801 16 030	30	145	16 x 110	100	M 16 x 80	10/50
	KDK 16-45/160	801 16 045	45	160	16 x 110	100	M 16 x 80	10/50
	KDK 16-80/195	801 16 080	80	195	16 x 110	100	M 16 x 80	10/50
	KDK 16-100/215	801 16 100	100	215	16 x 110	100	M 16 x 120	10/50
	KDK 16-130/245	801 16 130	130	245	16 x 110	100	M 16 x 120	5/40
	KDK 16-165/280	801 16 165	165	280	16 x 110	100	M 16 x 120	5/30
	KDK 16-200/315	801 16 200	200	315	16 x 110	100	M 16 x 120	5/30
	KDK 20-5/145*	801 20 005	5	145	20 x 130	200	M 20 x 70	5/40
	KDK 20-35/180*	801 20 035	35	180	20 x 130	200	M 20 x 70	5/25
	KDK 20-60/205*	801 20 060	60	205	20 x 130	200	M 20 x 70	5/25
	KDK 20-95/240*	801 20 095	95	240	20 x 130	200	M 20 x 70	5/20
